Description

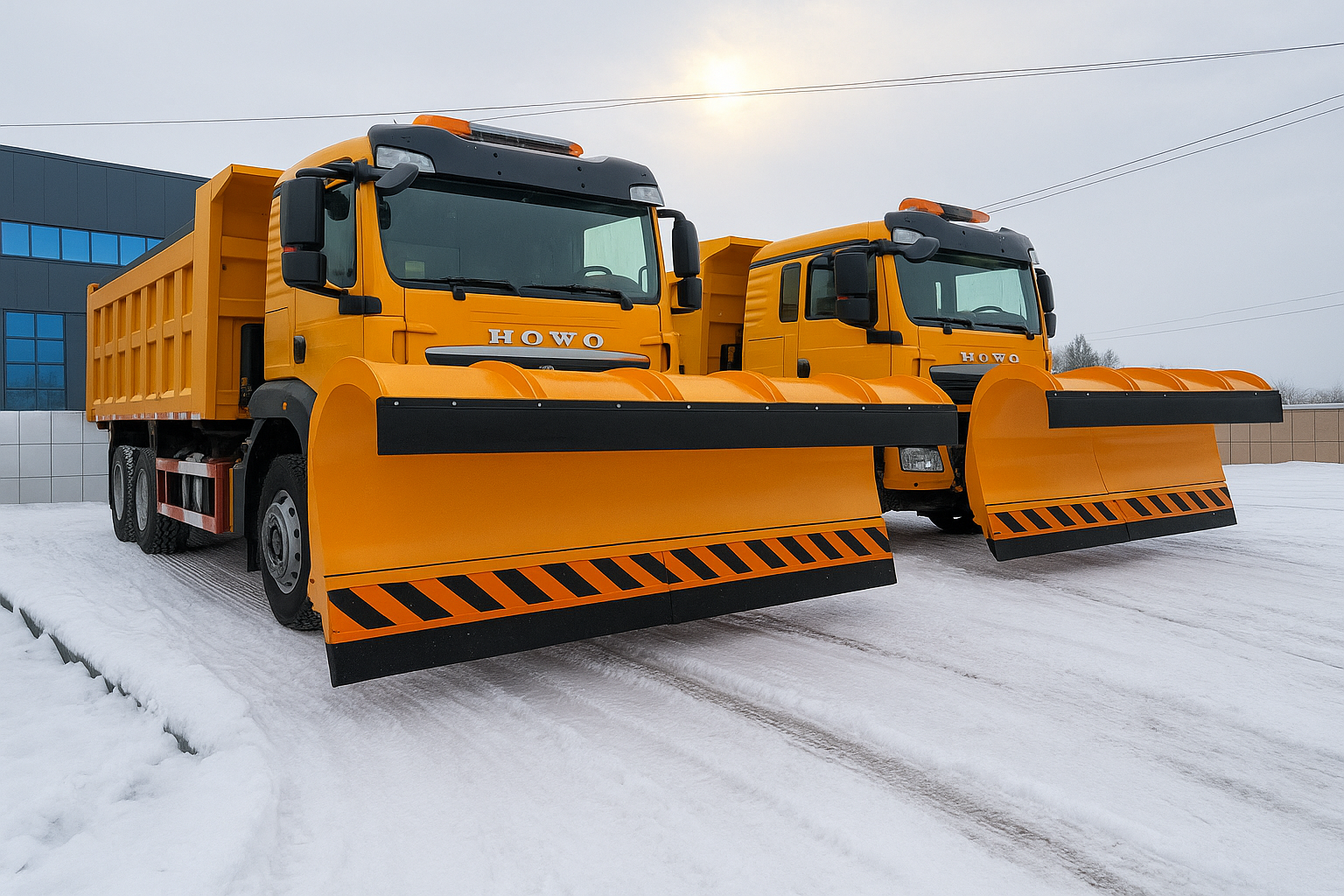

Front-Mounted Snow Plow Blade
✅ Easy & Flexible Operation
Equipped with our in-house developed wired control system, the snow plow can be operated both inside and outside the cab, delivering simple, intuitive, and reliable control.
✅ High-Efficiency Snow Clearing
The segmented plow blade features automatic obstacle detection and reset, providing powerful cutting performance, fast clearing speed, and extended snow-throwing distance.
✅ Wide Application Range
Ideal for long-distance snow removal on highways, ring roads, airport runways, and major traffic routes.
✅ Quick & Easy Blade Replacement
The plow blade is bolted to the moldboard, allowing fast replacement and reduced maintenance time.
✅ Safety You Can Trust
Automatic obstacle protection and self-protection functions ensure durable, economical, and safe operation even under harsh winter conditions.
Item | HP3000ZC | HP3300ZC | HP3660ZC |
Working Width | 3000±5（mm） | 3300±5（ mm） | 3660±5（ mm） |
Moldboard Thickness | 4mm | 4mm | 4mm |
Plow Blade Height | 1150±3 | 1150±3 | 1150±3 |
Hydraulic Angling Range | 30º±1º | 30º±1º | 30º±1º |
Clearing Width at 30° | 2600mm | 2860mm | 3120mm |
Maximum Operating Speed | 60Km/h | 60Km/h | 60Km/h |
Plow Weight | 1000Kg | 1040Kg | 1140Kg |
Cutting Edge Thickness × Width | 16±0.2 ×200±0.5 | 16±0.2 ×200±0.5 | 16±0.2 ×200±0.5 |
Automatic Leveling Angle | ±8º | ±8º | ±8º |
Number of Obstacle Springs | 4 | 6 | 6 |
Obstacle Clearance Height | 150mm | 150mm | 150mm |
Control System | In-Cab Wired Control | In-Cab Wired Control | In-Cab Wired Control |
Mounting Plate Height from Ground: 960 mm. Cutting Edge Height from Ground: 480 mm | |||
