Description

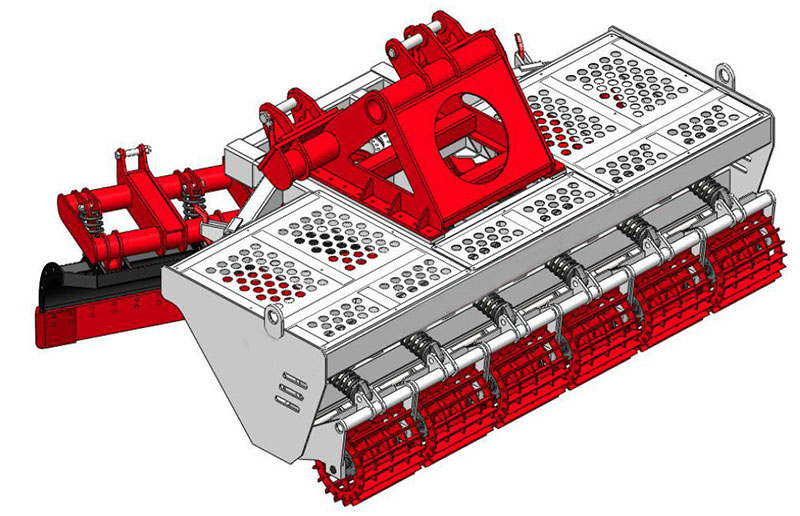

Key Features Innovative Dual-Structure Design: The equipment features a transverse straight-blade crushing system combined with high-angle side-discharge, an internationally pioneering layout. Precision Engineering: Structural components are designed using international modeling standards and finite element analysis for stress optimization. Manufacturing processes and materials are strictly controlled to ensure high-quality products. | |
Technical Specifications | |
Models | NSRI300-6-3 |
Working Width | 3000 mm |
Overall Dimensions (L × W × H) | 2500×3216×1475 mm |
Total Weight | 2940 kg(Welded Straight-Tooth Wheel) |
Total Weight | 3420 kg(Carbide-Inserted Tooth Wheel) |
Road Contour Adaptation | 130 mm |
Ice-breaking Wheels | 6 sets (welded/Carbide-Inserted Tooth Wheel) |
Ice-breaking Wheel Size (Dia.x Width) | 400×435 mm |
Collection Blades | 3 sets |
Snow Discharge Method | Side-Discharge Blade |
Discharge Angle | ±25° left/right |
Drive Equipment | 3T / 5T loader |
